자동화 장비[QIAGEN] 획기적인 자동샘플 처리장비_QIAsprint Connect

장비 정보
2026-07-16
조회수 153

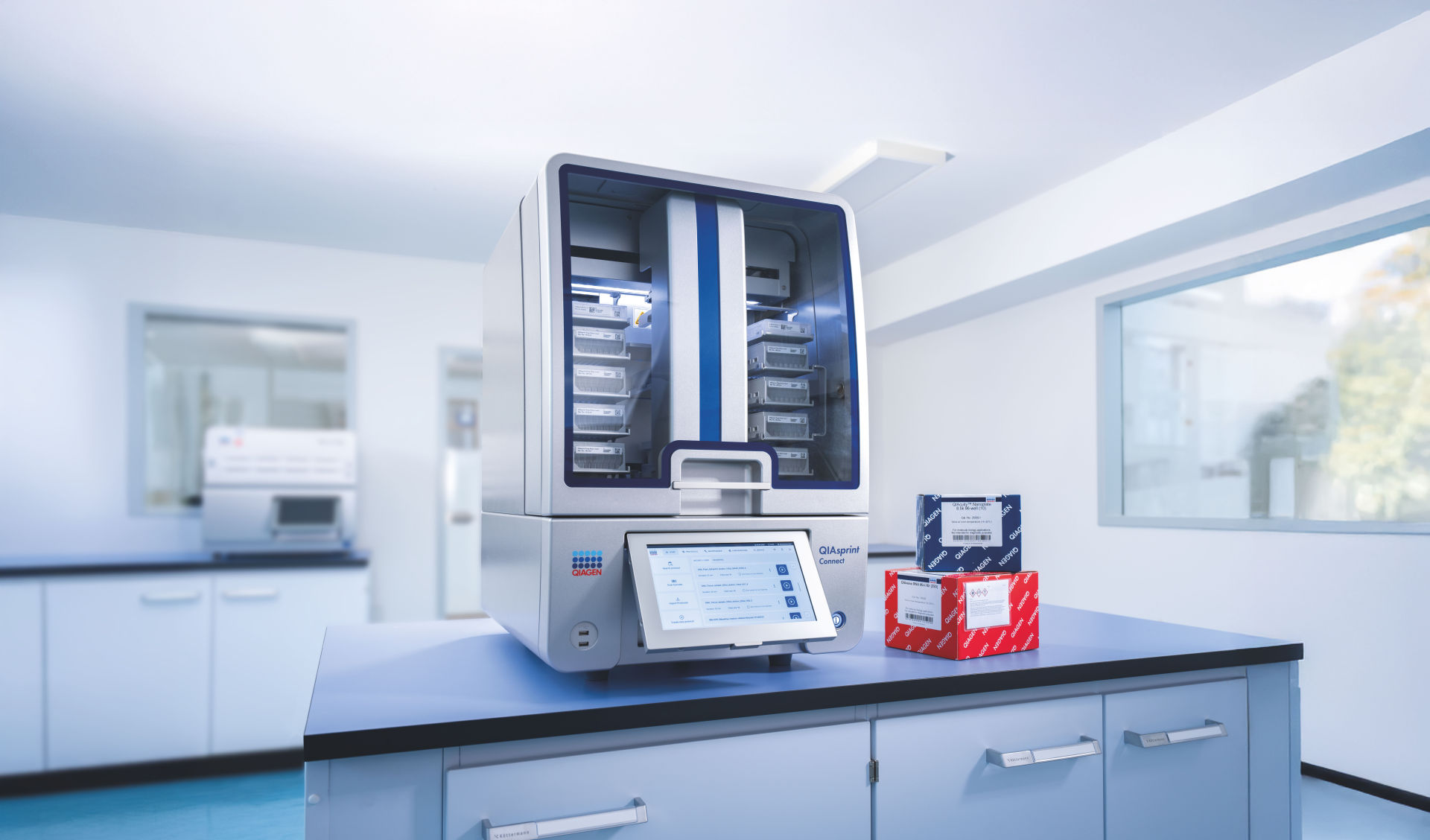

QIAsprint™ Connect

실험실 환경에 최적화된 탁상형 고속 자동 핵산추출장비




처리량은 극대화, 폐기물은 절반으로!

  • 압도적인 처리량과 안전성: 오염 걱정 없이 복잡한 매트릭스에서 최대 192개(2x96well) 샘플의 DNA/RNA를 고속 동시 정제합니다.
  • 스마트 및 친환경 혁신: 원격 모니터링(QIAsphere)과 맞춤형 프로토콜로 실험 효율을 높이고, 재사용 금속 프레임과 초박형 소모품 조합을 통해 플라스틱 폐기물을 50%나 줄여 더욱 지속 가능한 실험실을 실현합니다.
  • 완벽한 안심 패키지: 장비 작동에 필요한 필수 액세서리가 포함되어 있으며, 부품 및 인건비 포함, 1년 보증 서비스를 제공합니다.

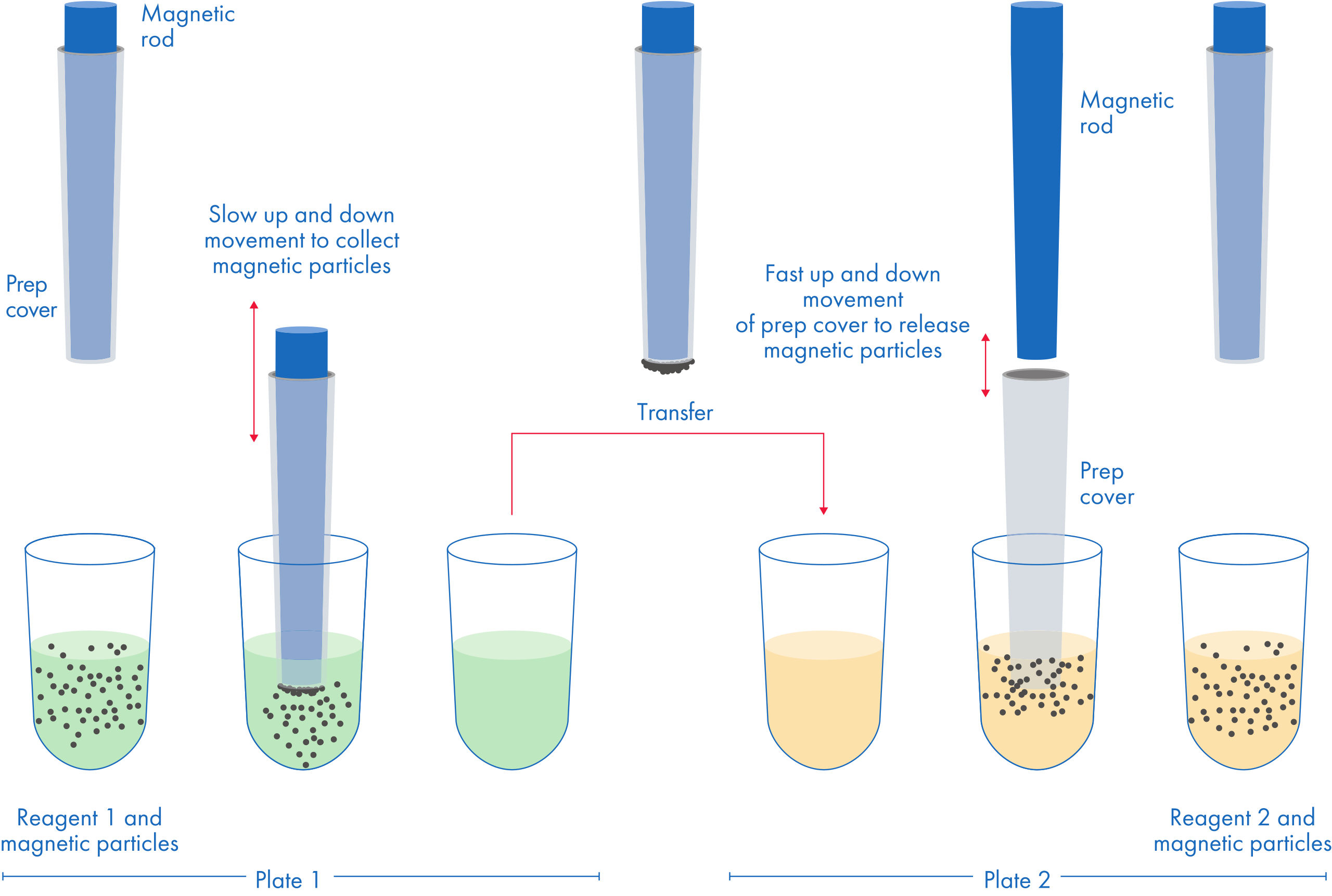

QIAsprint Connect 작동원리

  • Magnetic Particle(자성입자) 기술을 활용한 핵산 분리
  • Binding, Washing, Elution을 자동화하여 수작업 단계 축소

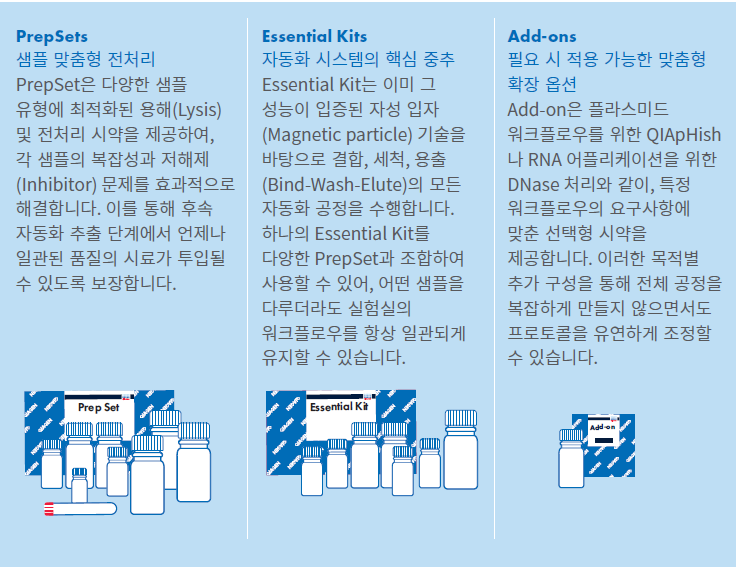

모듈러 키트 시스템(Modular kit system)

 블록처럼 설계하는 맞춤형 워크플로우

  • QIAsprint Connect는 샘플별 전용 PrepSet, 자동화된 결합-세척-용출 단계를 위한 공용 Essential Kit, 그리고 목적별 최적화를 위한 선택형 Add-on을 결합한 모듈형 키트 시스템을 갖추고 있습니다.

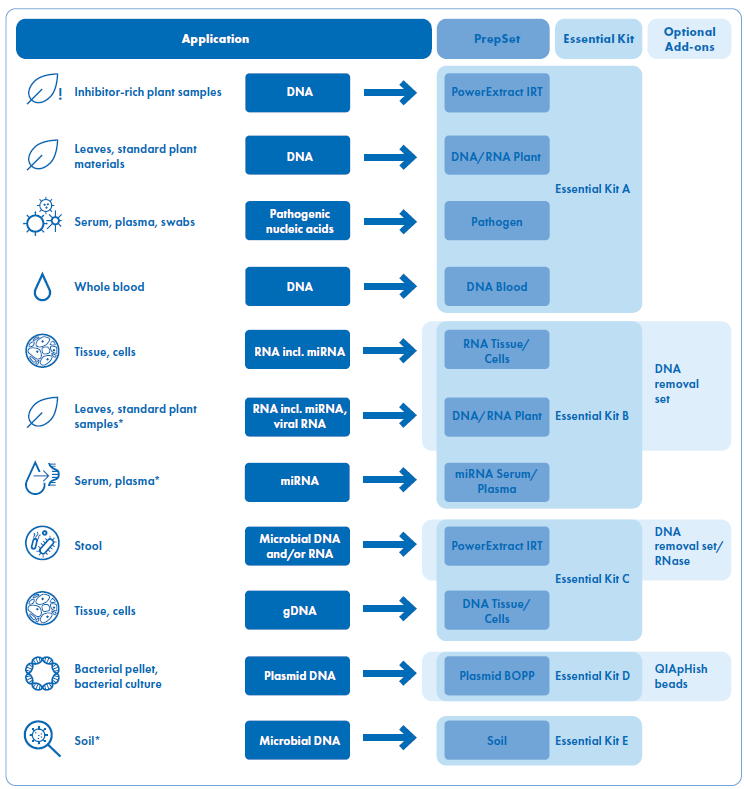

모듈형 키트 시스템 지원 범위




Sets & Consumables

CategoryProdcutDescriptionCat No.
InstrumentsQIAsprint ConnectBenchtop instrument for automated magnetic particle based nucleic acid purification from up to 2x96 samples in parallel using QIAsprint extraction chemistry; includes required instrument accessories, and 1-year warranty on parts and labor.9001234
ConsumablesQIAsprint Elution Plate (10)Set of 10 QIAsprint Elution Plates; for use with QIAsprint Connect583204
QIAsprint Frame Shield (100)Set of 100 QIAsprint Frame Shields; for use with QIAsprint Connect580010
QIAsprint Prep Cover (8)Set of 8 QIAsprint Prep Covers; for use with QIAsprint Connect582103
QIAsprint Prep Plate Insert (32)Set of 32 Prep Plate Inserts; for use with QIAsprint Connect582226
AccessoriesQIAsprint Prep Cover Frame (2)Set of 2 QIAsprint Prep Cover Frames; for use with QIAsprint Connect582111
QIAsprint Prep Plate Frame (2)Set of 2 QIAsprint Prep Plate Frames; for use with QIAsprint Connect
582211


QIAsprint Sets

CategoryProductDescriptionCat No.
Prep Set :
Sample-specific pretreatment		QIAsprint DNA/RNA Plant PrepSet (384)Buffer RLT for 384 DNA/RNA preparations from plant samples580669
QIAsprint DNA Blood PrepSet (384)Buffer AL, Proteinase K, and Buffer RDW for 384 DNA preparations from blood samples585459
QIAsprint Pathogen PrepSet (384)Buffer ACL, Proteinase K, and Carrier RNA for 384 preparations of viral DNA,RNA and bacterial DNA extraction585799
QIAsprint RNA Tissue/Cells PrepSet (384)Buffer RLT, Proteinase K and RNase-free water for 384 RNA preparations from tissue or cell samples586549
QIAsprint DNA Tissue/Cells PrepSet (384)Buffer ATL, Buffer VXL, Buffer ACB, Proteinase K, and Reagent DX for 384 DNA preparations from tissue or cell samples587449
QIAsprint PowerExtract IRT PrepSet (384)Solution CD1, Solution CD2, Buffer MVL for 384 DNA and/or RNA preparations from inhibitor-rich samples587679
QIAsprint Plasmid BOPP PrepSet (384)Buffer P1, P2 and P3, Buffer QBB, Buffer ETR2 and RNAse A588909
Essential Kits : Universal isolation reagentsQIAsprint Essential Kit A (384)384 preps for purification of nucleic acids: MagG Bead suspension, Buffer AW1, Buffer AW2 and RNase-free water585009
QIAsprint Essential Kit B (384)384 preps for purification of nucleic acids: MagG Bead suspension, Buffer RPE, RNase-free water586009
QIAsprint Essential Kit C (384)80 mL RNase-free water, 77 mL Buffer MW1, 12 mL MagAttract Bead suspension587009
QIAsprint Essential Kit D (384)384 preps for purification of nucleic acids: MagG bead suspension, Buffer PE, Buffer EB588009
Standalone buffers : Optional Add-onsQIAsprint DNA removal Set (384)384 preps for gDNA removal: DNase (RNase-free), Buffer RDW, RNase-free water586409
QIApHish Beads (17ml)QIApHish Bead suspension588900




*제품문의  T. 031-728-3239,  E. technical@dawinbiotech.com

#QIAGEN #다윈바이오 #QIAsprint #핵산추출 #핵산자동화
