Himac CR30NX 선택 가능 로터 목록 : Eppendorf 제품 소개

■ Eppendorf > Devices > Himac > Rotors

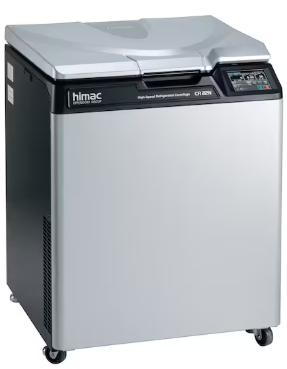

[Eppendorf Himac CR30NX ]

■ CR30NX 호환 로터 목록

	Rotor 명	Cat. No.	최대 용량 (Nominal capacity)	로터 최대 속도	비고
1	R4SS	5721352402	40 x 15 mL	2900 × g (4,000 rpm)
2	R5S4	5721302401	12 x MTP	3100 × g (4,700 rpm)
3	R7A	5721352100	6 x 1,000 mL	11100 × g (7,000 rpm)
4	R9A	5721302114	4 x 1,000 mL	15300 × g (9,000 rpm)
5	R9A2	5721302115	4 x 1,500 mL	15100 × g (8,500 rpm)
6	R10A3	5721302112	6 x 500 mL	18800 × g (10,000 rpm)
7	R10A5	5721302113	6 x 500 mL	18900 × g (10,000 rpm)
8	R10C2	5721352601	3,200 mL	14290 × g (10,000 rpm)	연속 유량 로터
9	R10H	5721302700	12 x MTP	13000 × g (10,000 rpm)
10	R11D2	5721302800	4 x 100 mL	15800 × g (11,000 rpm)
11	R16A2	5721302110	10 x 50 mL	36100 × g (16,000 rpm)
12	R16A3	5721302111	6 x 250 mL	40100 × g (16,000 rpm)
13	R17A	5721302109	14 x 50 mL	40900 × g (17,000 rpm)
14	R18C2	5721302600	1,000 mL	35100 × g (18,000 rpm)	연속 유량 로터
15	R19A	5721302108	6 x 80 mL	45600 × g (19,000 rpm)
16	R19A2	5721302107	8 x 50 mL	50000 × g (19,000 rpm)
17	R20A2	5721221005	8 x 50 mL	48000 × g (20,000 rpm)
18	R21A2	5721302105	6 x 30 mL	50000 × g (21,000 rpm)
19	R22A4	5721302104	30 x 2 mL	55200 × g (22,000 rpm)
20	R22A6	5721302103	12 x 10 mL	55100 × g (22,000 rpm)
21	R25ST	5721302400	6 x 40 mL	110000 × g (25,000 rpm)
22	R27A	5721302102	8 x 50 mL	88400 × g (27,000 rpm)
23	R30AT	5721302101	8 x 50 mL	110000 × g (30,000 rpm)
